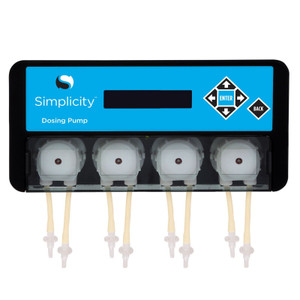

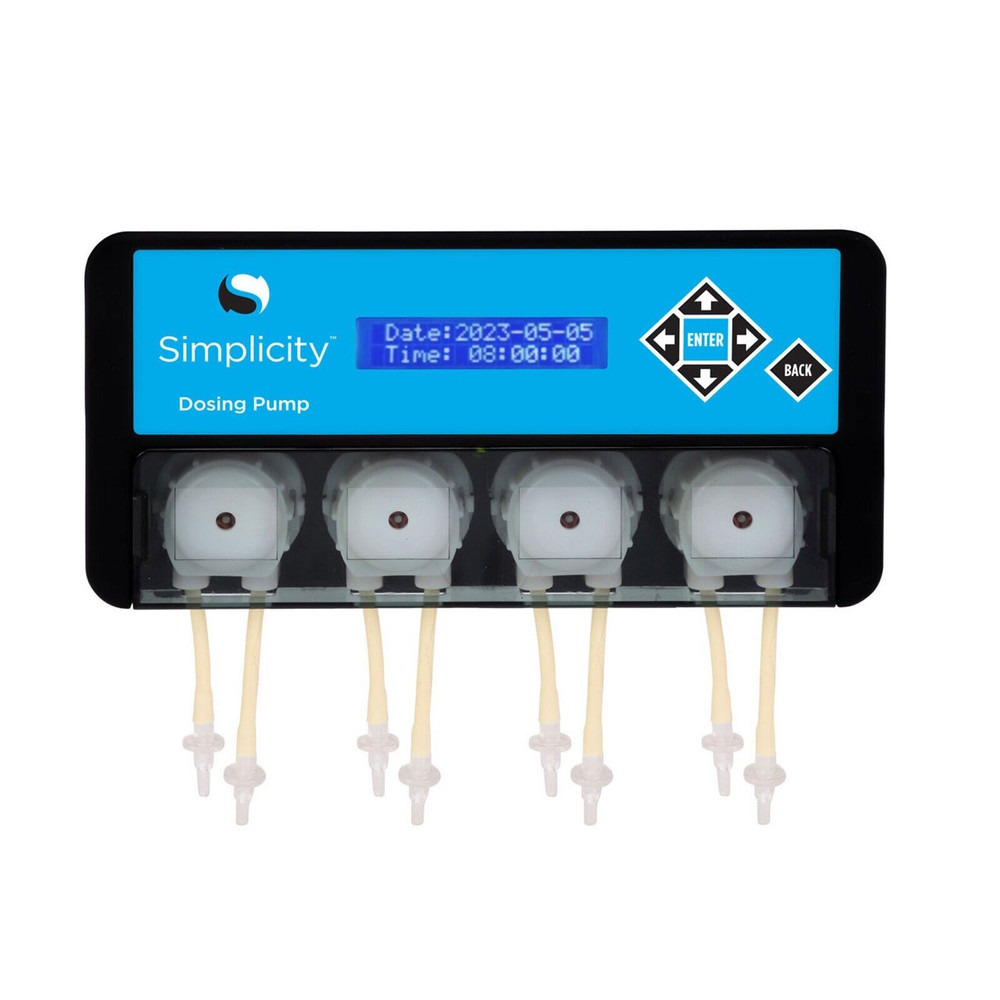

Simplicity 4-Head Dosing Pump

Simplicity 4-Head Dosing Pump


The Simplicity Dosing Pump is an accurate, effective, and affordable liquid dosing solution. The four dosing heads offer high-precision liquid dosing combined with easy-to-use integrated controls. The compact, space-saving design can be flush mounted to a wall or placed on a shelf. The included pump head labels make identifying dosing solutions easy.

* 4 Individually Programmable Pumps
* Compact, Space Saving Design
* Multiple Mounting Options
* Custom-label Each Pump Head

High-precision Liquid Dosing

Accurate to 0.1 mL for every 10 mL dosed.

Built-in Control

Each individually programmable pump can dose as frequently as once per hour or as infrequently as once every 30 days.

Flexible Installation Options

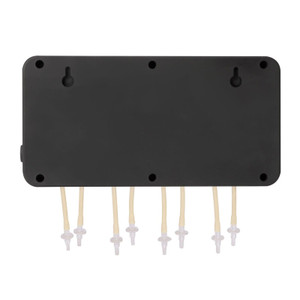

Simply place it on a shelf or mount it flush to a wall.

Space Saving Design

The compact design measures 7.9" long x 3.0" wide x 4.0" tall.

Quickly Identify Each Pump Head

The included pump head labels make identifying dosing solutions easy.

The Perfect Partner

Compatible with all Simplicity Dosing Containers

Specifications

* Dimensions: 7.9" x 3.0" x 4.0" (L x W x H); does not include tubing
* Weight: 1.60 lbs
* Color: Black
* Power Consumption: 7.5W
* Power Input: 12V DC
* Power Cord Length: 5 ft
* Warranty: 3-year manufacturer prorated warranty

Pump Specifications

* Control: Built-in (Not Bluetooth or Wi-Fi Compatible) (Control or Controllability)
* Control Interval: Independently-control pump heads from once per hour to once every 30 days
* Flow Rate: 50 mL per minute
* Maximum Head Pressure: 5 ft
* Accuracy: +/- 0.1 mL per 10 mL
* Dosing Volume: From 1 mL up to 9999 mL

What's Included

1. Simplicity 4-Head Dosing Pump
2. Power Supply
3. Pump Head Labels
4. Measuring Cup
5. Check Valves (5x)
6. Mounting Screws (2x)
7. Spare Pump Head
8. Mounting Template
